云台山世界地质公园博物馆
The World Geopark Museum in Yuntai Mountain,
Henan Province (Architectural Design)

项目地点  河南焦作市
项目业主  修武国土资源局
设计时间  2007年
竣工时间  2015年
建筑面积  4700m2


Location Jiaozuo city, Henan Province
Owner Xiuwu Land and Resources Bureau
Design Date 2007
Completed Date 2015
Gross Built Area 4700m2

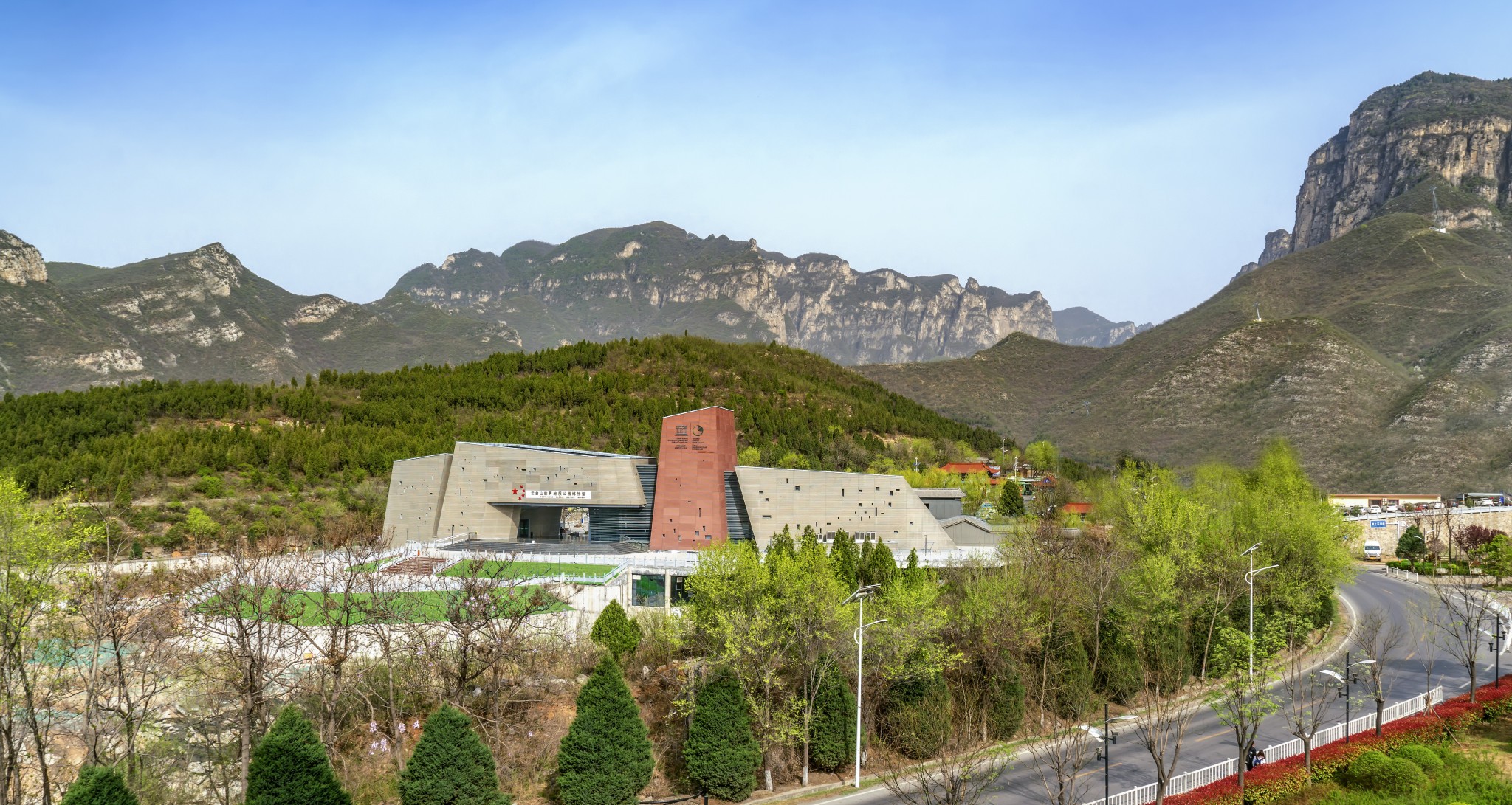

该博物馆选址于云台山景区有限的缓坡之上,为了减少巨大建筑体量对景区内视线的遮挡,我们将建筑做化整为零的“减法”处理,减小建筑的体量感,同时在主入口“挖出”约20米宽的洞口,允许视线从建筑的中心穿过。焦作是中国典型的资源枯竭型城市,我们建议使用再生混凝土作为建筑的表皮,以此倡导可持续发展的理念。粗糙的再生混凝土色彩取自于云台山峡谷中的石头,层层跌落的广场形态顺应了周边的真实地貌。

The museum is located in the limited gentle slope of Yuntai mountain scenic spot. In order to reduce the huge building volume to the view block, we divided the building by breaking up whole into parts to weaken the sense of building volume. At the same time, a hole about 20 meters wide was "excavated" in the main entrance to allow the view to pass through the center of the building. Jiaozuo is a typical resource-exhausted city in China. We suggested to use recycled concrete as the building envelope, as a metaphor for the concept of sustainable development. The color of recycled rough concrete was derived from the stone in Yuntai mountain canyon.

方案组成员 李保峰,胡可,王妍卉,李靖婕,袁力 等
施工图组成员 袁沙,胡兴生,申安付,甘文霞,姚江波 等
建筑摄影 冯蔚

Design Team LI Baofeng, HU Ke, WANG Yanhui, LI Jingjie, YUAN Li,etc.
Technical Design YUAN Sha, HU Xingsheng, SHEN Anfu, GAN Wenxia, YAO Jiangbo,etc.
Photographer FENG Wei
