福建永安桃园洞石林国家地质公园博物馆
Shilin National Geopark Museum in Taoyuan Cave,
Yongan, Fujian Province (Architectural Design)
项目地点 福建永安市
项目业主 永安市旅游局
设计时间 2005年
竣工时间 2008年
建筑面积 2900m2
Location Yongan city,Fujian province
Owner Yongan Tourism Bureau
Design Date 2005
Completed Date 2008
Gross Built Area 2900m2
在本项目的设计过程中甲方给予我们充分的自由度,从建筑选址到建筑方案,以我们的意见为主。在对七个可能之选址比较研究的基础上,最终选择了背山面水的宾铝东,该地点具有诸多风景建筑选址的优点,但在朝向上却有主立面背光的问题。我们将建筑体量“打碎”成若干小体块,使得方位角和高度角不断变化的阳光可以在不同时间照亮某些体块的侧面,从而改善因逆光而导致的建筑之单调形象。鉴于永安市系中国人均竹林面积最大的城市,故本博物馆的装修以原竹为主,以此体现城市与建筑的地域特色。本设计借鉴当地传统建筑的被动式降温技术,采用了地埋管式通风降温系统,并利用空气与土壤的热交换,减少建筑对空调的依赖。

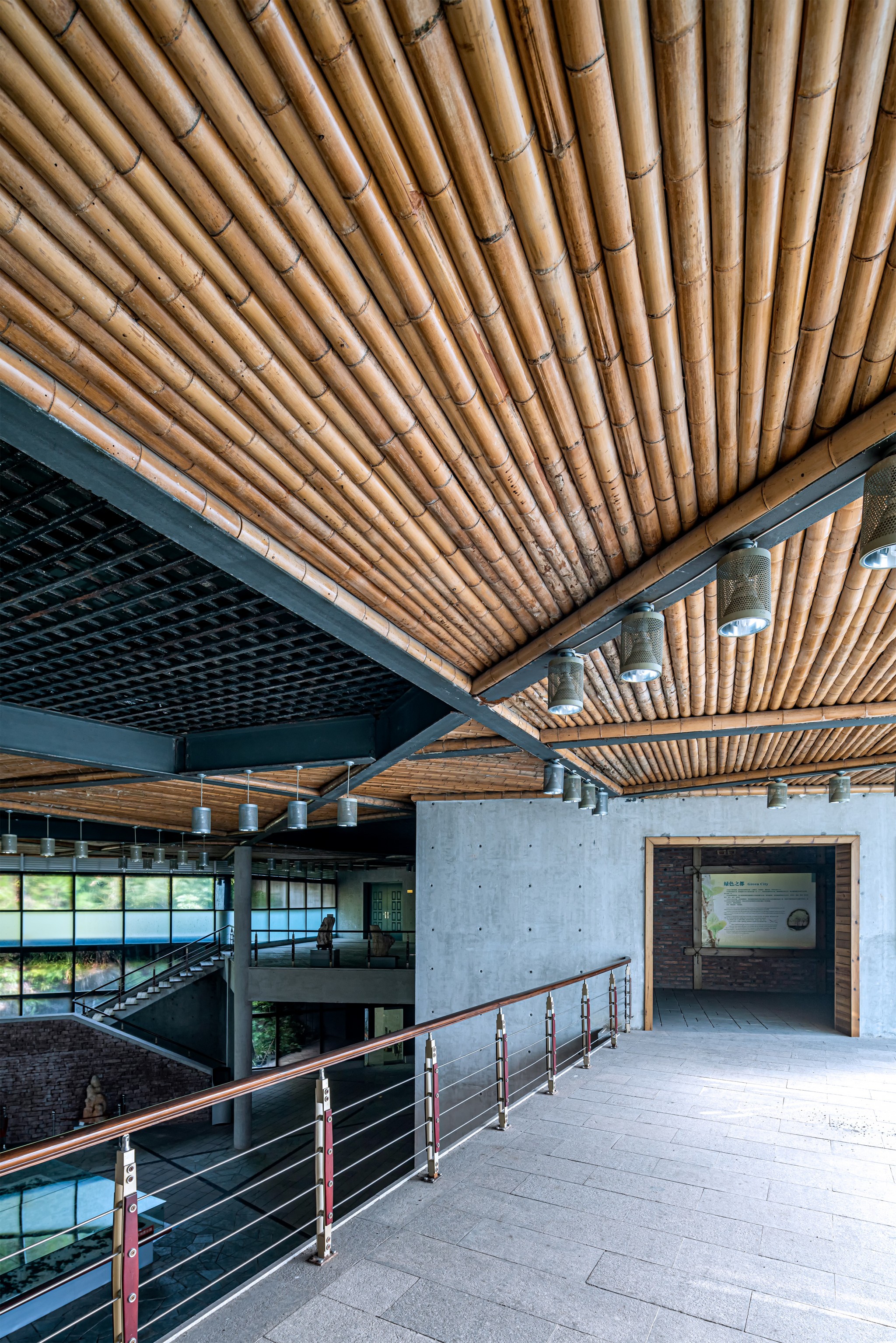

In the design process of this project, the owner gave us full freedom: from site selection to design, we basically decide. On the basis of the comparative study of 7 possible sites, we finally chose the Binv East, which has the advantages of many typical scenic building sites. Aiming at the problem of backlit main facade, we "broke" the building volume into several small blocks, so that the changing sunlight could illuminate the side of some blocks at different times, improving the monotony caused by backlighting. Since Yongan is the city with the largest area of bamboo forest per capita in China, the museum is mainly decorated with original bamboo to reflect the characteristics of the region. This design draws lessons from the passive cooling technology of local traditional buildings, adopts the buried pipe type natural cooling system, and uses the heat exchange between air and soil to reduce the dependence of the active air-conditioning.
方案组成员 李保峰,殷超杰,曾忠忠,陶冶,周维,赵婕 等
施工图组成员 袁沙,胡兴生,申安付,甘文霞,姚江波 等
建筑摄影冯蔚,李保峰
Design Team LI Baofeng, YIN Chaojie, ZENG Zhongzhong, TAO Ye, ZHOU Wei, ZHAO Jie,etc.
Technical Design YUAN Sha, HU Xingsheng, SHEN Anfu, GAN Wenxia, YAO Jiangbo,etc.
Photographer FENG Wei,LI Baofeng
