The project site is located in Wuhan University Science Park. Due to the influence of Tangxun Lake, the road network in this area is not very regular, and many irregular blocks are generated. The four sides of the land used in this project are not parallel. According to the "offset" command of CAD, the outer wall of the building retracts in parallel along the adjacent road, finally forming a trapezoidal inner courtyard space which can be used as public green space and employee movement space. In this way, we create a neat corporate image in irregular terrain.
In "offset" order, it is made into the surrounding wraparound pattern, and the narrow external space will appear at the intersection of the road. We designed the facade of the exhibition hall into diagonal lines, creating a friendly atmosphere for urban corners.
Surrounding wraparound pattern leaves only a small amount of green space. Therefore, many roofs are made into the second nature, which increases more leisure space for employees to contact with nature while the statistics of green space rate remain unchanged.
The company mainly deals with building materials which requires a large number of laboratories. Pipe Wells are an important functional component of experimental buildings. For architects, this is also an opportunity to create a form tosolve the sewage function while creating a strong concave and convex façade at the same time.

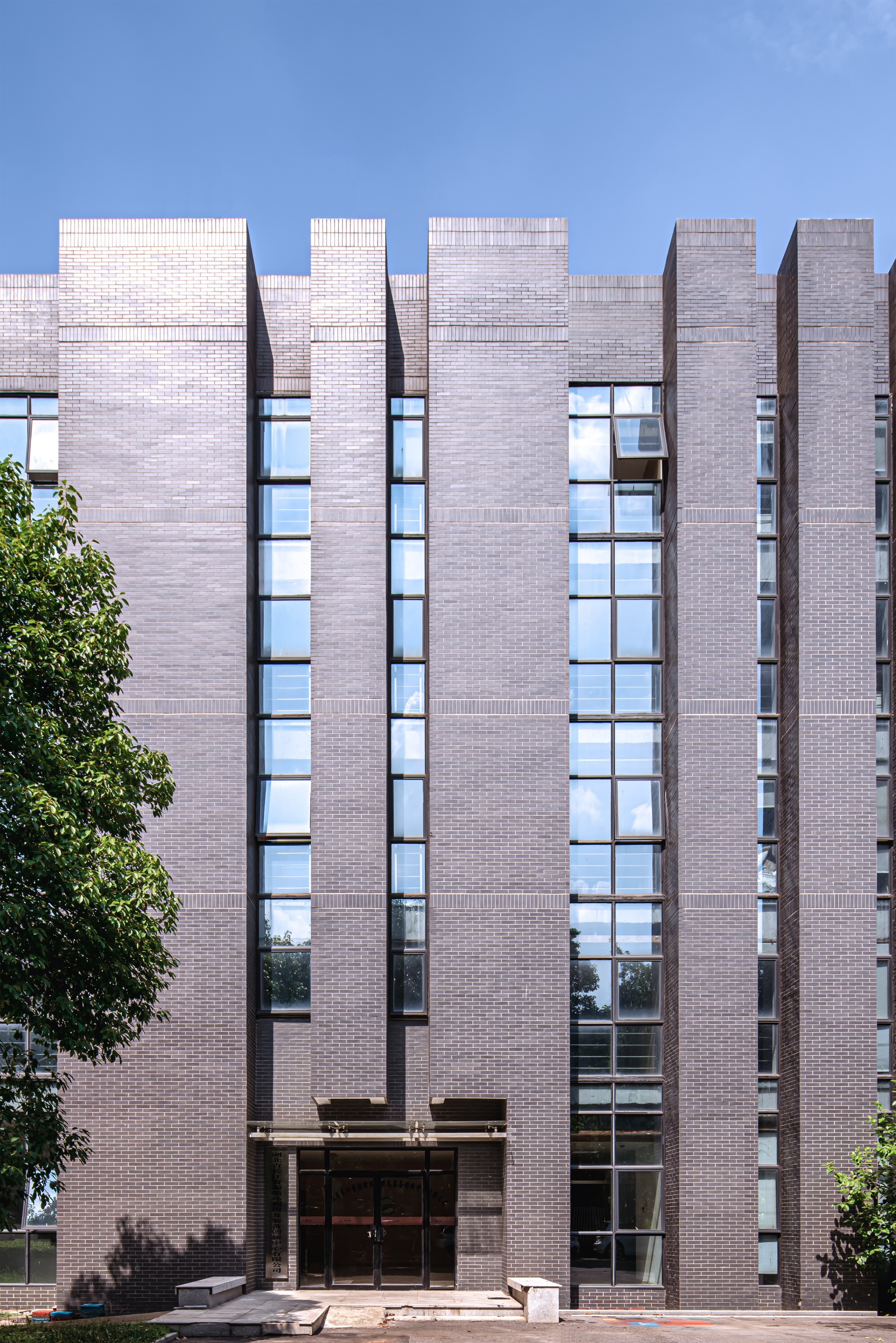

On the south side of the building, we adopted a facade language with concave and convex intersections, which can provide shading in summer. And sunlight can enter the interior smoothly in winter due to the low height of the sun. On the west side of the building, we adopted a large solid wall which can not only keep out the strong western sun, but also provide the landmark of the building on the urban scale.
施工图组成员 袁沙、雷宁、阮晓红、申安付、汪荣、王沛陵 等
Architecture Design LI Baofeng, DING Jianmin, HU Ke，etc.
Park planning DING Jianmin
Technical Design YUAN Sha, LEI Ning, RUAN Xiaohong, SHEN Anfu, WANG Rong, WANG Peiling，etc.
